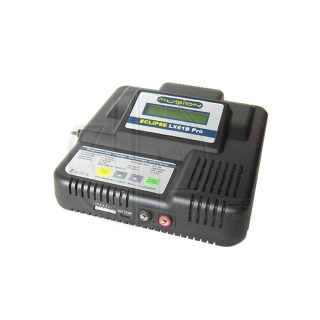

Fusion LX61B Pro Eclipse AC/DC Charger for LiPo/Li-Ion/LiFe/NiMh or NiCd Batteries - FS-LX61BP

Fusion LX61B Pro Eclipse AC/DC Charger for LiPo/Li-Ion/LiFe/NiMh or NiCd Batteries

Features

• High power 120W (90W AC) charging, ideal for the new 5C packs
• Pack Cycling (Charge to Discharge / Discharge to Charge)
• 2-Line, 16 character, blue backlit LCD makes the screen extremely clear and legible
• Built-in intelligent balancing circuit is designed to individually balance each cell on the connected lithium battery pack within the tolerance of 5mV during charge or discharge
• Balancing plug adaptor boards are supplied to suit JST XH, FlightPower and Thunder Power batteries. Optional adaptors for Polyquest are available
• Voltage monitoring feature shows each actual cell voltage on the screen during balancing
• Various warning messages for incorrect input voltage, wrong connections, unsuitable battery condition and reverse polarity on output

Specifications:
Input Voltage - 11~15V DC, 100V~240V AC / 50~60Hz
Battery Type & Cells - 1~6 Li-Po, Li-Ion, Li-Fe / 1~14 NiCd, NiMH / 1~6 Lead-Acid cells
Battery Capacity - 100mAh ~ 9900mAh adjustable ONLY for Li-Po, Li-Ion, Li-Fe
Charge Rate - 0.1A ~ 8A Adjustable in 100mA steps (Max 120W, 90W AC)
Discharge Rate - 0.1A ~ 5A in 10mA steps (auto limited to 50W max)
Trickle Charge Rate - 0 ~ 200mA
Balancing Max. - Current 280mA (Tolerance 5mV during charge or discharge)
Charge Termination - 'Zero Delta V' peak detection for NiCd/NiMH 'Constant current/Constant voltage' for Li-Ion/Li-Po/Li-Fe & Pb
Delta Peak Sensitivity - 5mV ~ 25mV for NiCd & 3mV ~ 25mV for NiMH (per cell)

Note: Battery connection lead is not included
