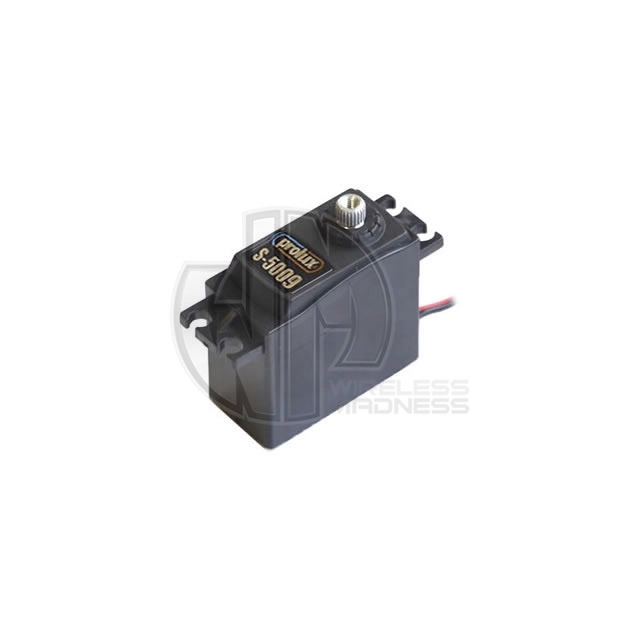

Prolux Digital High Torque Metal Geared Servo with Futaba Style Connector
A new addition to the quality Prolux range is this high torque, metal geared digital servo. Providing exceptional value with the quality that you come to expect from Prolux it is sure to become a favourite with modellers.
Specification:
Operating Temperature Range - 0 to +70 Degree C
Operating Angle - +-45 Deg.
Gear Type - Metal Gears
Motor Type - Cored Motor
Connector Type - Futaba style
Dimensions - W20mm x L40mm x H40mm
Weight - 1.8oz. (50g)
Operating Voltage - 4.8V and 6.0V
4.8V - Torque Kg./cm 8.00 Speed (Sec/60 Deg. at no load) 0.27
6.0V - Torque Kg./cm 9.00 Speed (Sec/60 Deg. at no load) 0.23
In the Box
1 x Prolux 5009F digital servo
1 x 4 Arm servo horn
1 x Straight servo horn
4 x Rubber grommets
4 x Mounting screws
4 x Eyelets
