Arrma 1/8 Kraton 4WD Extreme Bash Roller Speed Monster Truck (Rolling Chassis) - ARA106053
Arrma 1/8 Kraton 4WD Extreme Bash Roller Speed Monster Truck (Rolling Chassis)

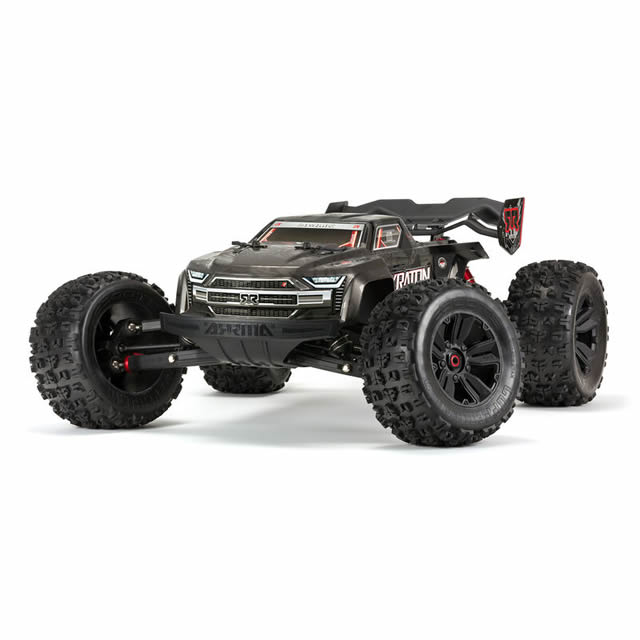

The ARRMA Kraton 1/8 EXtreme Bash Roller 4WD Monster Truck is a rolling chassis kit that adds extra toughness everywhere it counts. This 1/8 scale chassis is the perfect platform for high-speed bashing over brutal terrain. It's fully assembled and ready to accept your choice of powerful electronics. Top off the KRATON Extreme Bash Roller Speed Monster Truck with the included, exclusive EXB matte and gloss finish body — and you're ready to bash without boundaries.

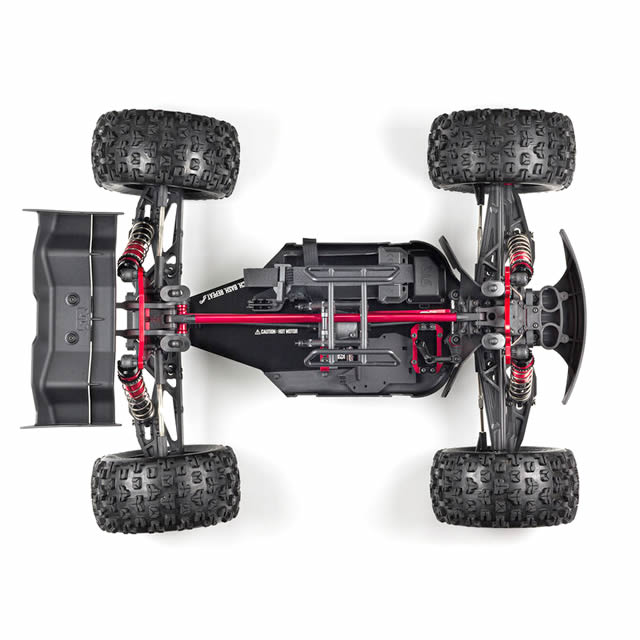

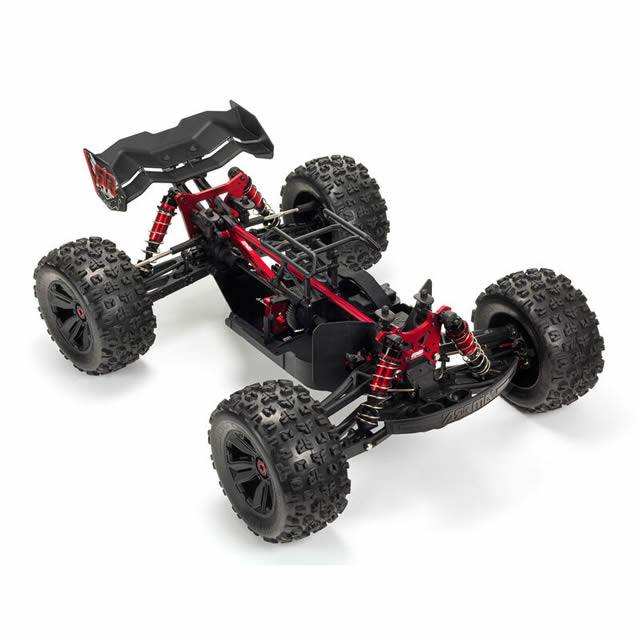

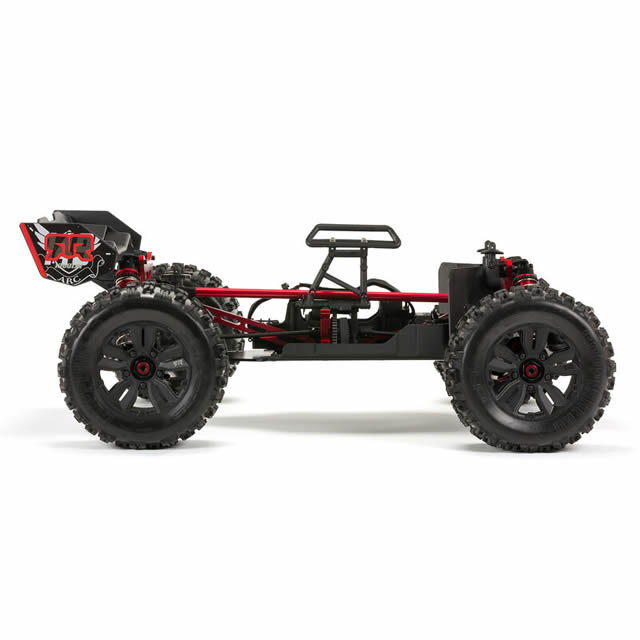

"Designed Fast, Designed Tough" may be an understatement when describing the KRATON Extreme Bash Roller Speed Monster Truck. Made of strong anodised 7075 T6 aluminium, the laser-etched chassis plate gains further rigidity from the use of front and rear aluminium chassis braces. Strong composite chassis side pods and a centre body support and brace provide more rugged resilience.
Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An Extreme Bash toughened suspension system smooths the ride, with a steel rear suspension mount and adjustable oil-filled shocks mounted on 7075 T6 anodised aluminium front and rear shock towers.
The KRATON™ Extreme Bash Roller Speed Monster Truck's list of EXB components also includes the following — and more — to give this big machine uncompromising muscle:
Features
- Designed Fast, Designed Tough
- EXB (Extreme Bash) components for extreme durability
- 7075 T6 Aluminium laser-etched chassis plate
- Aluminium front and rear chassis braces
- Centre body support and brace for maximum durability
- Strong composite chassis side pods
- Aluminium front upper hanger, top plate, and rear suspension mount
- Heavy-duty front and rear arms with aluminium strengthening cap
- Heavy-duty steel turnbuckles
- Heavy-duty front upper steel hinge pins
- Heavy-duty drivetrain
- Durable steel driveshafts
- All-metal diff outdrives and gearbox internals
- Plated limited-slip differentials
- Safe-D input gears
- Oil-filled adjustable shocks
- 7075 T6 Anodised aluminium front and rear shock towers
- Red-anodised aluminium servo mount
- Large volume waterproof receiver box
- Black matte and gloss effect body
- Front bumper
- High downforce wing
- Multi-terrain DBoots Copperhead 2 tyres on multi-split spoke wheels
- Durable wheel hubs
Specifications:
Scale - 1/8
Vehicle Type - Monster truck
Approximate Assembly Time - 1-3 Hours
Ball Bearings - Yes, full set
Body - Painted, decaled and trimmed
Bushing Material - Metal
Differential - Three oil-filled metal gear
Drivetrain - 4WD
Gear Pitch - 1.0 Module
Pinion - 12T
Spur Gear - 50T
Final Drive Ratio - 17.92
Shock Type - Adjustable, oil-filled
Tyre Tread: dBoots COPPERHEAD2
Tyre Diameter - 6.65 in (169mm)
Weight - 9.35 lb (4.25kg)
Wheel Hex Size - 17mm
Wheelbase - 14.84 in (377mm)
Width - 18.15 in (461mm)
Height - 7.68 in (195mm)
Length - 23.39 in (594mm)
Max Battery Dimensions - (138.5 x 46 x 35mm)
Chassis - CNC 7075-T6 Aluminium plate, 0.12" (3mm) thick
In the Box
Arrma 1/8 Kraton 4WD Extreme Bash Roller Speed Monster Truck (Rolling Chassis)
Required to Complete
Transmitter and Receiver
Steering Servo 20x40x38mm
Compatible Electronic Speed Controller
Compatible Brushless Motor
Compatible 3S-6S LiPo Battery
Compatible LiPo Battery Charger
