Sky RC D100 V2 AC/DC Dual Balance Charger/Discharger for LiPo, LiFe, LiHV and NiMh Batteries - SK-100131

Sky RC D100 V2 AC/DC Dual Balance Charger/Discharger for LiPo, LiFe, LiHV and NiMh Batteries - SK-100131

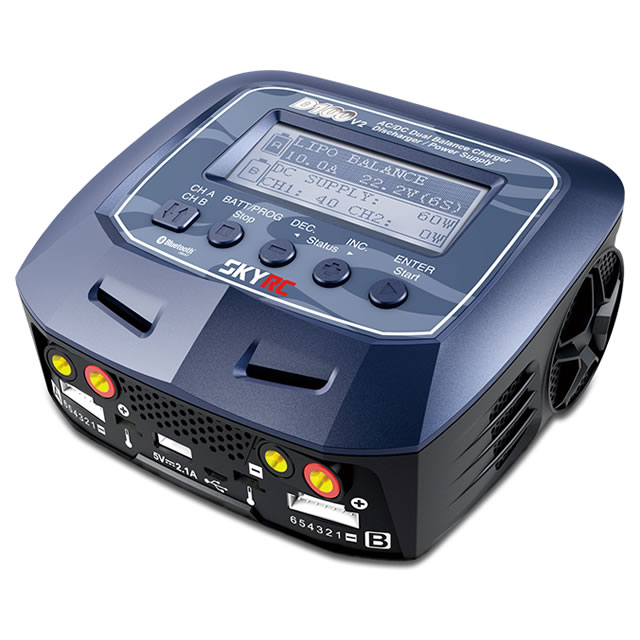

Sky RC D100 V2 AC/DC Dual Balance Charger/Discharger for LiPo, LiFe, LiHV and NiMh Batteries

Sky RC D100 V2 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo/LiHV/LiFe/Lilon/NiMH/NiCd/PB) simultaneously. Capable of operating as a power supply with the maximum output of 100W helps the hobbyists to power the DC equipment. With its unprecedented function of voice guide, even a freshman can use this charger without any hurdles.

A speaker supported English and Chinese separately have been included in the left side of the charger that can reduce the times for mis-operation

The Bluetooth 4.0 connectivity allows the user to remotely monitor the D100 V2 comfortably through an app on a portable device such as smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, the Android app from Google Play Store. Operation of the app is self-explanatory and the same on iOS and on Android. Explicit pairing is not required; after download and installation just activate Bluetooth on your mobile device and launch the app, the D100 V2 and your device will establish Bluetooth connection automatically.

A very unique feature of D100 V2 has SCAN TO GO (automatically charging system). As the range of battery types and capacity becomes more and more, each battery requires its own dedicated charging process. It is easy to set up the charger incorrectly for a specific type of battery, resulting damage to the battery or even cause a major accident.

The revolutionary SCAN TO GO provides a solution to this problem by allowing the user to assign a QR Code which contains all the relevant data for the battery for charging or discharging. The user can create a unique QR Code by using “SkyCharger” apps. Print it and paste it on the battery. Using your smart phone and launch “SkyCharger” app. Since all the essential information is stored in the QR Code. All you need to do is press the Scan button, and the charge or discharge process will start automatically.

AC Input Voltage - 100-240V
DC Input Voltage - 11-18V
Charge Wattage - AC 100W (Shared Distribution) / DC 2 x 100W
DC - 100W x 2
Discharge Wattage - 10W x 2
Charge Current - (0.1A-10.0A) x 2
Discharge Current - (0.1A-2.0A) x 2
DC Power Supply Output - 13.8V/Max. 100W
Current Drain for Balancing Port - 300mA/cell
Trickle Charging Current - 50mA-300mA & OFF
LiPo/LiFe/Lilon/LiHV Battery Cell Count - 1-6S
NiMH/NiCd Battery Cell Count - 1-15S
Pb Battery Voltage - 2-20V

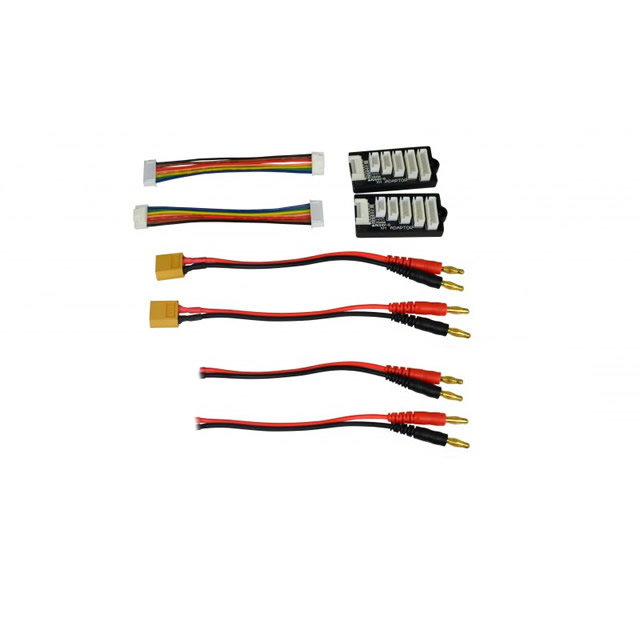

In the Box
Sky RC D100 V2 AC/DC Dual Charger for LiPo, LiFe, LiHV and NiMh Batteries
2 x XH Balance Adaptor Boards with Connecting Cable
2 x XT60 Charge Leads
2 x Charge Fly Leads for making your own Charge Leads
UK AC Power Cable
