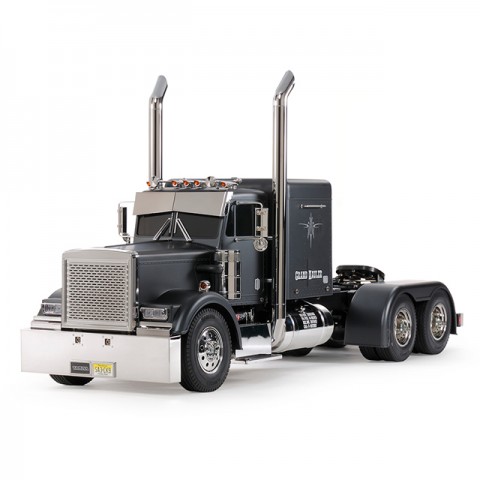

Tamiya 1/14 Grand Hauler Matt Black Edition Truck (Unassembled Kit) - 56356
Tamiya 1/14 Grand Hauler Matt Black Edition Truck (Unassembled Kit)
Take control of your very own big rig - this R/C model assembly kit recreates a massive boxy, customised truck like those seen in North America. Body parts are given a sumptuous finish, pre-painted in metallic black and with a matte top coat that contrasts superbly with the numerous metal-plated parts. The model's ladder frame chassis features aluminium side channels with resin cross members and is equipped with a highly realistic suspension utilising metal leaf springs and dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A 6-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations (sold separately).
Features
- Enjoy that customised mood, enhanced by metal plated parts such as the front bumper and radiator grill
- The roof features plated horn and light bezel parts, as well as a plated sun visor for the windshield
- Plated side mirror parts also include kerb mirrors, Moving metal stays allow adjustment of mirror position
- Further detail is added to the oversized air cleaners, with photo-etched parts depicting air intakes
- Lowered step provides storage location for MFC unit. Fuel tanks are also mounted low under the body
- Use the coupler to attach any of Tamiya's 1/14 scale trailers
Specifications:
Length - 692mm
Width - 192mm
Height - 330mm
Weight - Approx. 3.9kg (*with all equipment)
Wheelbase - 433mm+103mm
Chassis - Aluminium & Polycarbonate Ladder Frame
Suspension - Front/Rear Leaf Springs
Caster Angle - 0° (Front & Rear)
Camber Angle - 0° (Front & Rear)
Toe Angle - 0° (Front & Rear)
Dampers - Front/Rear Aluminium
Drivetrain - Rear 2-Axle Drive
Transmission - 3-Gear Transmission
Gear Ratio - (1st) 32.49:1, (2nd) 17.76:1, (3rd) 10.66:1
Diff Gear - 3-Bevel Diff.
Motor - Type 540 Brushed
Tyre Width - 22mm (Front/Rear)
Tyre Diameter - 83mm (Front/Rear)
Tread - 156mm (Front), 138mm (Rear, Double Tyre)
In the Box
Tamiya 1/14 Grand Hauler Matt Black Edition Truck (Unassembled Kit)
3-Speed Transmission
540 Brushed Motor
Wheels & Tyres
Decal Sheet
Required to Complete
2 x Servos for steering and gearbox
4+ Channel Transmitter and Receiver
8AA Batteries for the Transmitter
7.2v NiMh stick battery and charger
Brushed ESC or Tamiya multi-function unit
Tools for Assembly
Note: If you are using the multi-function unit you will not require an ESC, a 6-channel radio system will be required for use of this unit.
Please Note: Complete vehicle shown in photos are for illustrative purposes only. This model is a kit requiring assembly and additional items. See Required to Complete list above for full list of items required to complete the model.
