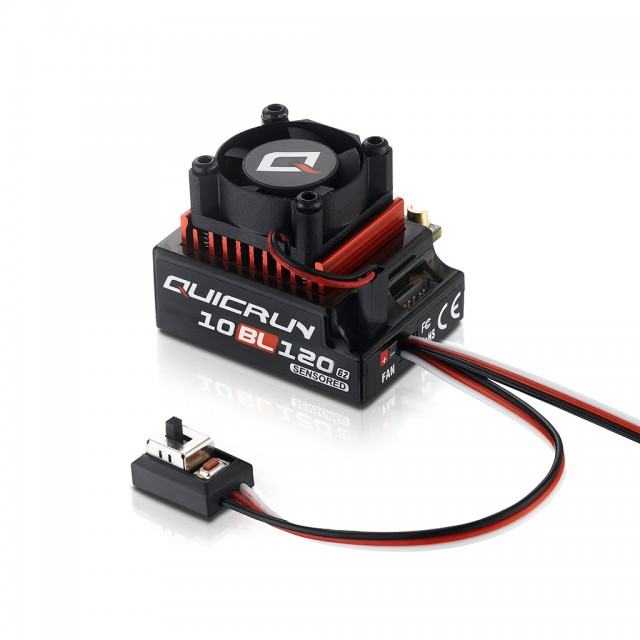

Hobbywing QuicRun 120A 10BL120 ESC G2 Brushless Electronic Speed Controller - HW30125002
Introducing the Hobbywing QuicRun 10BL120 G2 - Brushless Electronic Speed Controller.
Intelligent freewheeling technology, greatly improved performance.
The innovative intelligent freewheeling technology enables higher driving efficiency and lower operating temperature of the ESC, and further improves the stability and reliability of the ESC.
Powerful built-in BEC
The ESC has a built-in BEC with a continuous current of 5A and supports a maximum output current of up to 10A. The output voltages are switchable between 6V, 7.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.
Efficient cooling system

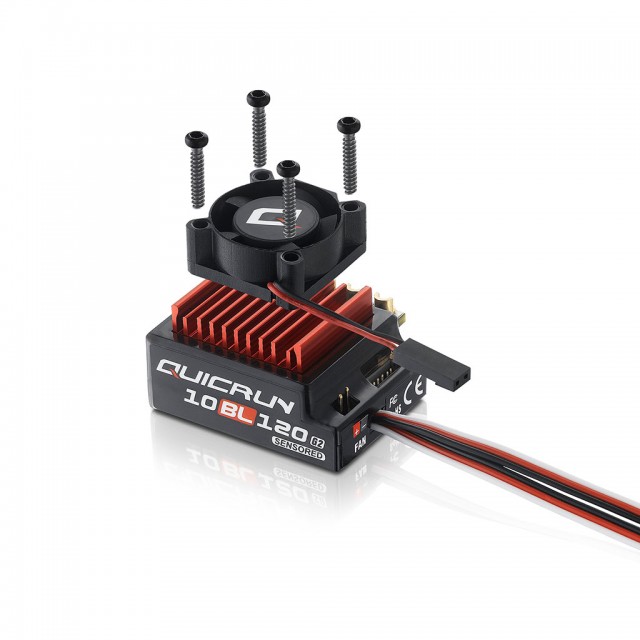

The integrated radiator design, combined with the patented copper thermal conduction sink on the internal power board of the ESC, facilitates the rapid conduction of internal heat to the radiator, and the fan is added to dissipate heat.
This results in an efficient heat dissipation system to ensure that the ESC is always performing at its best.
Capacitor Thermal Protection
Capacitor thermal protection is designed and implemented into the ESC to effectively prevent capacitors from exploding and causing irreversible damages to the ESC due to overloading.
Built-in capacitor
Super large built-in capacitor, The built-in capacitor of the ESC is as high as 1640uF. External capacitors are not needed for 10th scale models on the market and helps improves ease of use.
Features
- High Reliability & Durability
- Upgraded BEC output voltage and current
- Adjustable boost and turbo timing
- Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, overload protection
- Supports firmware upgrade of ESC (Multi-function LCD program box need to be purchased)
Specifications:
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No
Cont./Peak Current - 120A/760A
Input Voltage - 1-2S LiPo
BEC Output - 6V/7.4V@4A
Wires & Connectors
Input Wires -Black-12AWG-200MMmm*1 / Red--12AWG-200MMmm*1
Output Connectors - Blue-12AWG-200mm*1 Yellow-12AWG-200mm*1 Orange-12AWG-200mm*1
ESC Programing via
SET Button on ESC - Supported
LED Program Box - Supported
LCD Program Box - Supported
OTA Programmer - Not Supported
Program Port - Separate Program Port
Firmware
Firmware Upgrade - Not Supported
Size & Weight
Size -43*36.8*32.3mm
Weight -101.5g
Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles -1/10th Touring Cars/Buggies/Drift Cars
KV Rating/T Count -2SLipo≥4.5T 3SLipo≥10.5T 3650 Size Motor
