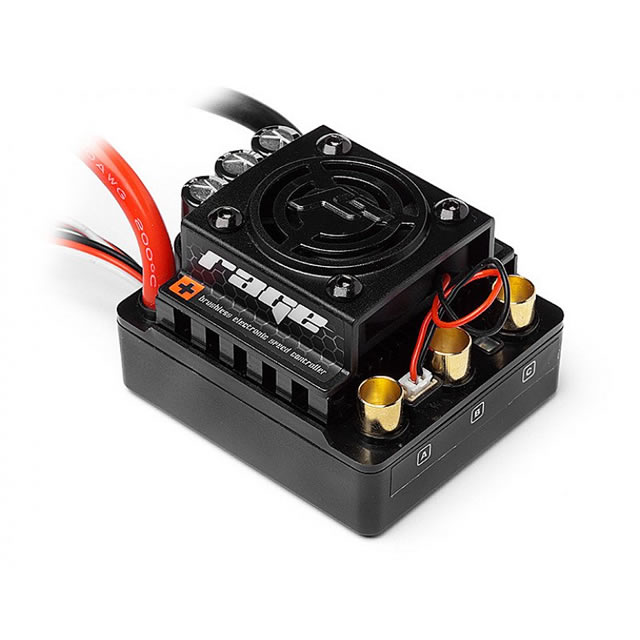

HPI Flux Rage 1/8th Scale 80A Brushless ESC for use with Flux Scream Motor - 101712
HPI Flux Rage 1/8th Scale 80A Sensorless Brushless ESC for use with Flux Scream Brushless Motor
Fit your car or truck with the latest high-power speed controller from the HPI Flux range!
The Flux Rage is a tough 1/8th scale brushless sensorless ESC that's designed to take the rigors of rallycross buggy and truggy racing and bashing. Run this speedo to its limits and it just keeps coming back for more! Have a blast with the normal forward/reverse/brake mode or switch it into race mode for maximum power - you can even use this in powerful crawling machines with the forward/reverse only mode for no braking action!
Fully programmable ABS, drag brake, braking force, reverse force, motor timing and punch allows you to totally customise the feel of the Rage to your driving style and needs. You can even use the optional HPI #101280 programmer to make the adjustments even easier.
A low-voltage cut-off protects the battery pack, and the controller is protected by a thermostat that automatically shuts it down in the case of overheating.
Three Running Modes:
Racing (Forward and Brake only)
Forward, Reverse and Brake
Forward and Reverse (no brake) for rock crawling
Proportional ABS brake function with 4 steps of brake force adjustment, 8 steps of drag-brake force adjustment, 4 steps of initial brake force adjustment, 4 steps of reverse force adjustment, 8 steps of motor timing adjustment and 9 soft start (punch) mode settings from soft to aggressive.
Multiple Protection Features:
Low voltage cut off protection for LiPo or NiMH/NiCd battery
Overheat protection for the ESC
Continuous Current - 80A
Burst Current - 380A
Battery Types - 6-12 cell NiMh or 2-4 cell LiPo
BEC Output - 6V/1.5A
Dimensions - 47.6 x 54.5 x 37.1mm
Weight - 105g
