Overlander ESC XP2 20A Brushless Speed Controller for Planes and Helis - OL-2725

Overlander ESC XP2 20A Brushless Speed Controller for Planes and Helis - OL-2725

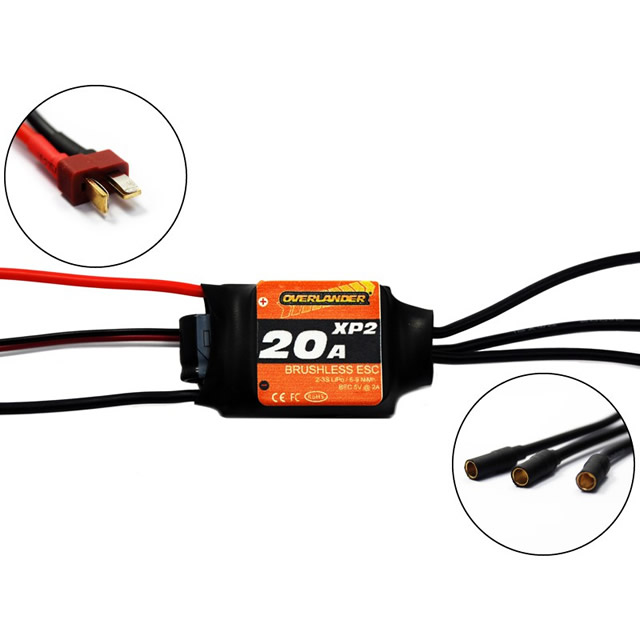

Overlander ESC XP2 20A Brushless Speed Controller for Planes and Helis

This series of speed controllers from Overlander have high technology and perfect function. Aiming at none-hall direct current brushless motors, you can set several parameters through program card (not included) on ESC which are convenient and easy to use. Now fitted with Dean's connector for the battery and 3.5mm gold connectors for the motor!

Features

  • Full protection feature including low voltage, over-heat, throttle signal lost, start-up protection and self-check
  • Sensorless design for use with Planes and Helicopters
  • Fitted with Dean's connector for battery and 3.5mm gold connectors for the motor
  • Excellent start-up performance, great throttle linear and quick throttle response
  • Support highest motor speed 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles)
  • Easily configured with program card (Not Included)
  • System can automatically detect throttle neutral point
  • 3 timing modes can match different motors
  • 3 modes of start force adjustment
  • Governor mode for heli
  • Reverse motor direction
  • Low resistance PCB

Specification:
Input Voltage - 2-3 cell Li-Po (5-9 NiMh)
Continuous Current - 20A (Burst max 25A 10secs)
BEC Output - 2A/5V
Motor Wire - 18AWG
Battery Wire - 18AWG
Battery Connector - Deans
Motor Connector - 3.5mm Bullet
Dimensions - 48 x 25 x 8 mm
Weight - 19g

Write a review

Please login or register to review
    Brand: Overlander
  • Product Code: OL-2725
  • Availability: In Stock This item is in stock and available to buy now!
  • £16.95

Tags: 20a, brushless, esc, ol-2609, overlander, speed controller, xp2
