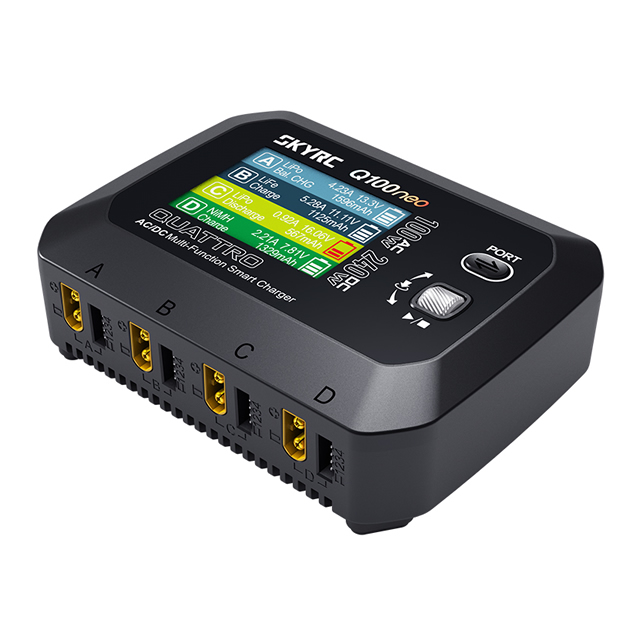

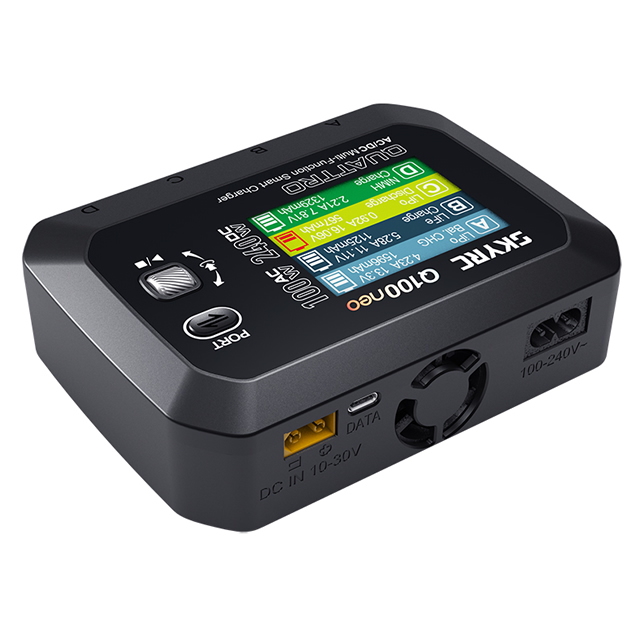

SKY RC Q100 Neo AC/DC Quad Smart Charger/Discharger for LiPo, LiFe, LiHV, LiIon, Pb and NiMh Batteries - SK-100223
SKY RC Q100 Neo AC/DC Quad Smart Charger/Discharger for LiPo, LiFe, LiHV, LiIon, Pb and NiMh Batteries
The SkyRC Q100neo is a compact, AC/DC multi‑function smart charger that powers four independent outputs to keep your battery fleet ready. Each port delivers up to 6A with precise control, 600 mA balance current and ±0.02 V accuracy, helping you charge efficiently for FPV, drone soccer and RC racing.
Whether plugged into mains or powered in the field, the Q100neo delivers stable, flexible charging across multiple chemistries with intelligent power allocation helping you spend less time waiting and more time flying, driving and winning.
Quad Output Performance
Four fully independent outputs, each up to 6.0A
AC mode: up to 100W total (1 port: 60W max; 2 ports: 50W + 50W; 3 ports: 33W each; 4 ports: 25W × 4)
DC mode: up to 240W total (60W × 4)
Smart power distribution under AC automatically reallocates power as ports finish
Built for precision: ±0.02 V accuracy and max 600 mA balance current
Battery Chemistries & Working Modes
Chemistries: LiPo, LiFe, Li‑ion, LiHV, NiMH, NiCd, Pb
LiPo/LiHV/LiFe/Li‑ion: 1–4S with Balance Charge, Charge, Discharge, Storage
NiMH/NiCd: 1–8S with Normal, Discharge, Re‑Peak, Cycle D→C, Cycle C→D
Pb (Lead‑acid): 3S/6S with Normal, AGM Charge, Cold Charge, Discharge
Faster Discharging
Main port discharge: up to 5W
Discharge via balance port: up to 10W (LiPo/4S)
Combined with main port: up to 15W for quicker pack management
Digital Power Supply Mode
Quad output DC PSU for bench testing and prototyping
Voltage: 1.0–30.0V, adjustable in 0.1V steps
Current: 0.1–6.0A, adjustable in 0.1A steps
Each output independently controllable

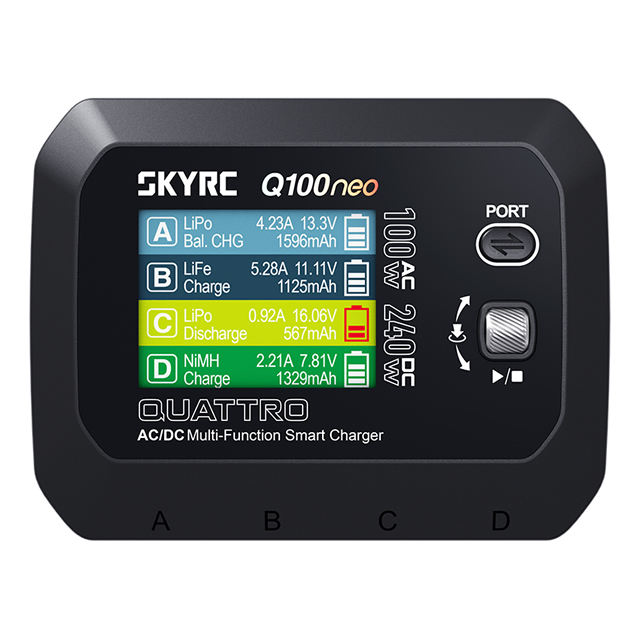

Display & Interface
2.8 inch TN display, 240 × 320 resolution, 262K colours
ColorX interface with selectable languages: English, Dutch, French, Chinese, Japanese
Efficient Design, Compact Form
Proprietary rectifier circuit and MCU control for efficient, compact power delivery
Case size: 140 × 108 × 43.5 mm; weight: 491g
Power & Operating Range
AC input: 100–240V (50/60 Hz)
DC input: 10–30V
Operating temperature: 0–40°C; storage: −10–70°C
Working/storage humidity: 5%–75% RH (non‑condensing)
Specifications:
Input Voltage - AC: 100v to 240v, DC: 10v to 30v
Charging Power (DC) - max. 240w (4x60w dynamically distributed)
Charging Power (AC) - max. 100w
Charge Current - 0.1-6.0A
Balance Current - max. 600 mA
Discharge Power - 5w (Main Port), 10w (Balance Port, LiPo/4S)
Display - 2.8'' colour display, 240×320 px, 262k colours
Battery Types - LiPo/LiFe/LiIon/LiHV: 14S, NiMh/NiCd: 18S, Pb: 3S / 6S
Dimensions - 140x108x43.5 mm
Weight - approx. 491g
In the Box
SKY RC Q100 Neo AC/DC Quad Smart Charger/Discharger for LiPo, LiFe, LiHV, LiIon, Pb and NiMh Batteries
3-Pin AC UK Plug
Please Note: Batteries must be charged using a specifically designed charger for your battery. Never charge batteries unattended, when not properly used, batteries may burst into flames and catch fire. It is highly recommended that a safe pouch or fireproof container is used for storage and whilst charging the battery. By purchasing this charger, the buyer assumes all risks associated with its use.
