Sky RC B6ACNeo AC/DC Charger and Discharger for LiPo, LiFe, LiHV, LiIon, Pb and NiMh Batteries - SK-100200
Sky RC B6ACNeo AC/DC Charger and Discharger for LiPo, LiFe, LiHV, LiIon, Pb and NiMh Batteries

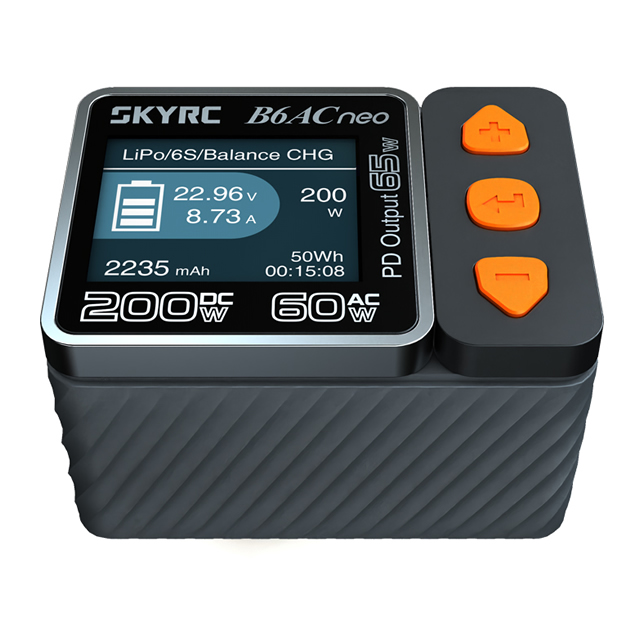

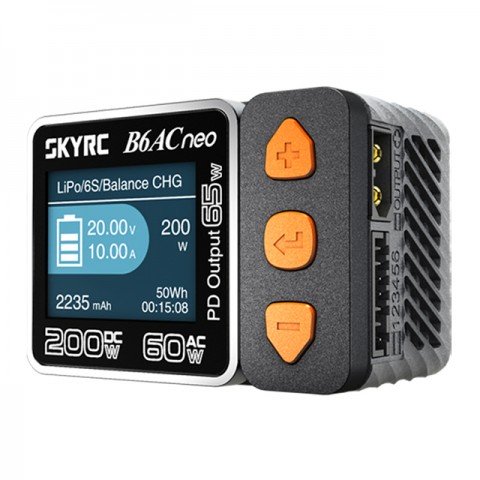

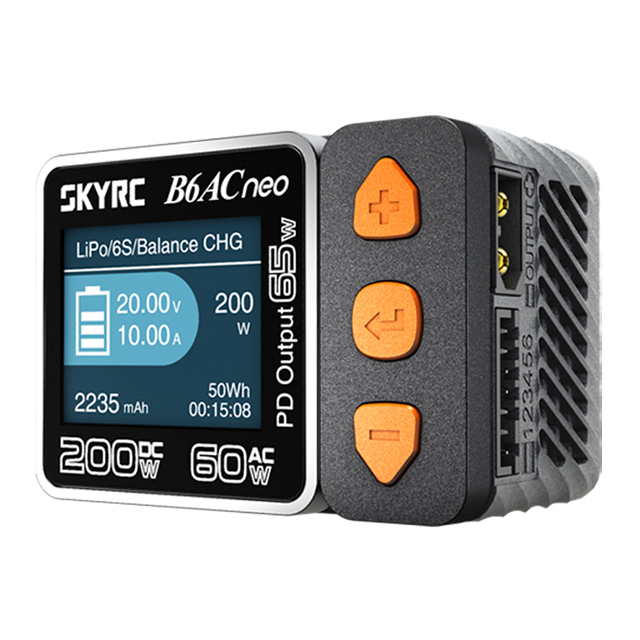

Meet B6ACneo by SkyRC, a compact evolution of the iconic iMax B6AC chargers since 2006. Stunningly smaller than a credit card, B6ACneo sports a sleek design with vibrant colours, and boasts an impressive 200W charging capacity with DC power and 60W with AC, surpassing the original B6AC's 50W AC limit. B6ACneo reduces charging time, maximising your time in RC action.
Don't let its downsized footprint deceive you - this charger packs a punch!
When powered by DC, the tiny and shiny powerhouse delivers a remarkable charging power of up to 200W with a maximum current of 10A. Even when connected to the AC power, it effortlessly fills up to 60W. With its tiny footprint, the B6ACneo exceeds expectations in every way! Experience the ultimate combination of power and portability with the B6ACneo.
What more could you ask for from such a compact powerhouse?
SkyRC B6ACneo features an XT60 interface as its DC input and Universal 100-240V AC input, ensuring greater flexibility and convenience in charging your RC batteries.
The built-in balance port enables B6ACneo to discharge faster, allowing it to discharge at up to 19W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to just 5W.
When the balance port is connected, B6ACneo is a versatile battery checker capable of measuring cell voltage and the balance state of LiPo, LiHV, LiFe, and LiIon battery. The overall voltage and individual cell's voltage of will be displayed on the fly to help tell whether the battery is charged or discharged and whether it requires balancing.
It will work as a safeguard for batteries, as, for example, LiPo battery is renowned for their high energy density and lightweight properties. Proper care and monitoring are crucial to ensure their safety and longevity.
B6ACneo is not only professional in charging but also can act as a digital power supply. After clicks on the menu, B6ACneo is ready for your application, offering an optimal voltage of 2-27V with 0.1V increment, adjustable 1-10A current. Short circuit, Overload, and Reverse polarity protection are all included!
Specifications:
Shell Material - PC-ABS V0
Display Type - TN
Screen Size - 1.77 inch
Resolution - 128x160 Pixel
Number of Colours - 262K
Battery Output Connecter - XT60 and JST-XH
AC Input Voltage - 100v～240V 50/60Hz
DC Input Voltage - 10-30.0v
DC - 200W
AC - 60W
QC3.0/PD - 5V⎓3A, 9V⎓3A, 12V⎓3A, 20V⎓3.25A Max. 65W
Discharge power - 19W based on 6S(4.2V/S)
Battery Types - LiPo, LiFe, LiIon, LiHV, NiMh, NiCd
Number of Cells for Lithium - 1-6 cells
Number of Cells for NiMh and NiCd - 1-15 cells
Number of Cells Pb - 3S/6S
Size - 70.6x50.6x46mm
Weight - 150g
Operation Type
LiPo/LiFe/LiIon/LiHV: Balance CHG, Charge, Storage, Discharge
NiMH/NiCd: Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, Discharge
Pb: Normal, AGM Charge, Cold Charge, Discharge
In the Box
Sky RC B6ACNeo AC/DC Charger and Discharger for LiPo, LiFe, LiHV, LiIon, Pb and NiMh Batteries
3-Pin AC UK Plug
Please Note: Batteries must be charged using a specifically designed charger for your battery. Never charge batteries unattended, when not properly used, batteries may burst into flames and catch fire. It is highly recommended that a safe pouch or fireproof container is used for storage and whilst charging the battery. By purchasing this charger, the buyer assumes all risks associated with its use.
