Tamiya Neo Scorcher 4WD 1/10 Scale Buggy TT-02B (Unassembled Kit) - 58568

Tamiya Neo Scorcher 4WD 1/10 Scale Buggy TT-02B (Unassembled Kit) - 58568

Tamiya Neo Scorcher 4WD 1/10 Scale Buggy TT-02B (Unassembled Kit)

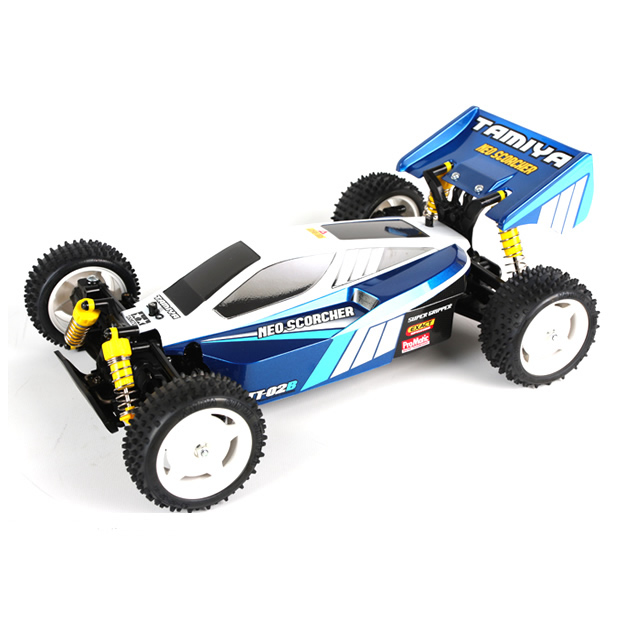

The Scorcher, a popular and speedy 4WD racing buggy from the late-1980s Tamiya line-up, is back, with a new name and updated body! Made from durable polycarbonate and featuring a stylish large rear wing, the body design drew heavily upon the original Scorcher for inspiration, and can be decorated with the minimum of fuss, thanks to the large stickers included. It runs on the easy-assembly shaft-driven 4WD TT-02B, and marries the chassis' controllability with square spike tyres for superior grip on rough surfaces. This off-road veteran is back with new features to scorch your rivals!

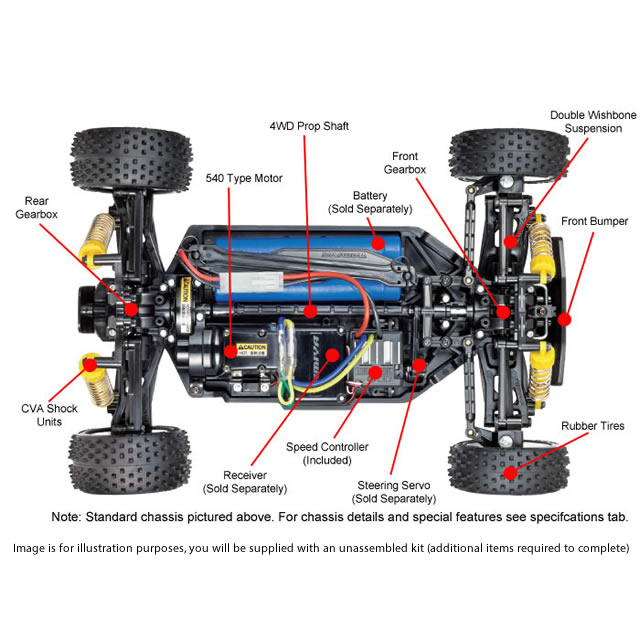

The shaft-driven 4WD TT-02B buggy chassis uses a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus CVA shock units, giving the car assured handling, while L/R suspension arms and uprights are identical to facilitate hassle-free assembly. F/R gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening 4 screws, making maintenance a breeze. 4 different gear ratios can be applied with the use of 3 separately-sold types of pinion gears, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.


  • This is a 1/10 scale R/C assembly kit
  • Bathtub-type frame features longitudinally-placed battery and R/C mechanism placed flat for a low centre of gravity
  • 4-wheel double wishbone suspension features oil dampers, and is combined with high-grip spiked tyres to give excellent traction
  • Front and rear gearboxes have differentials to ensure smooth cornering
  • Includes RS-540 Torque-Tuned Motor
  • A wide range of option parts are available to customise the chassis

Length - 380mm
Width - 250mm
Height - 145mm
Wheelbase - 266mm
Tread - 217mm (Front), 208mm (Rear)
Tyre Width/Diameter - 32/82mm (Front), 41/82mm (Rear)

In the Box
Tamiya Neo Scorcher 4WD 1/10 Scale Buggy TT-02B (Unassembled Kit)
RS-540 Torque-Tuned Motor
Brushed ESC (Electronic speed controller)

Required to Complete
2 Channel Transmitter and Receiver
AA Batteries for Transmitter
7.2v NiMh Stick Battery Pack
7.2v NiMh Battery Charger
Steering Servo
Polycarbonate (PS) Spray Paint
Tool set for assembly

Please Note: Complete vehicle shown in photos are for illustrative purposes only. This model is a kit requiring assembly and additional items. See Required to Complete list above for full list of items required to complete the model.
